Modern GPUs are no longer just massive rasterization engines designed solely to push triangles to a display. They have rapidly evolved into massively parallel AI accelerators, fundamentally altering how silicon is allocated on the die. As deep learning workloads demand exponentially more compute, traditional rendering hardware has hit a strict efficiency wall.
For years, rendering relied heavily on single-precision floating-point (FP32) operations executed by standard ALU or CUDA cores. While excellent for calculating pixel color and geometry, FP32 pipelines are incredibly inefficient for the dense, lower-precision matrix multiplication required by neural networks. To bypass this bottleneck, hardware engineers introduced dedicated silicon blocks explicitly designed for Matrix Multiply-Accumulate (MMA) operations. By physically separating AI math from graphics math, GPU vendors can achieve massive throughput gains in tasks like upscaling, ray tracing denoising, and local LLM inference.
Understanding how this hardware works is essential for anyone evaluating modern GPU architectures. Let us break down exactly how NVIDIA, AMD, and Intel have physically designed their silicon to handle these intense mathematical workloads.
What are dedicated GPU matrix units?
At the lowest level of deep learning, almost all computational heavy lifting comes down to matrix multiplication. Neural networks require hardware to multiply massive grids of numbers and accumulate the results continuously across billions of parameters. Executing this on standard vector ALUs requires cycling data through registers repetitively, consuming immense amounts of time and power.
Dedicated GPU matrix units solve this by employing a systolic array architecture or specialized wide-register SIMD execution. Instead of processing operations sequentially or in isolated parallel threads, a matrix unit ingests blocks of data (like a 4×4 or 16×16 matrix) and flows the results through a localized grid of multiply-accumulate (MAC) units in a single clock cycle. This architectural shift dramatically reduces register file reads and writes. Furthermore, these units natively support mixed-precision math. They can ingest low-precision inputs like FP16, INT8, or even FP4, multiply them at breakneck speeds, and accumulate the result in a higher precision format like FP32 to prevent data loss.
The transition from vector math to matrix math represents the most significant architectural leap in GPU design over the last decade. However, the three major vendors have taken drastically different paths to implement this concept on the die.
NVIDIA Tensor Cores: The pioneer of mixed-precision
NVIDIA aggressively changed the trajectory of GPU architecture with the introduction of the Volta architecture, bringing Tensor Cores to the data center. Since then, these dedicated silicon blocks have trickled down into the GeForce consumer line, evolving through the Turing, Ampere, Ada Lovelace, and Blackwell generations. NVIDIA’s approach relies on dedicating substantial physical die space strictly to matrix operations.

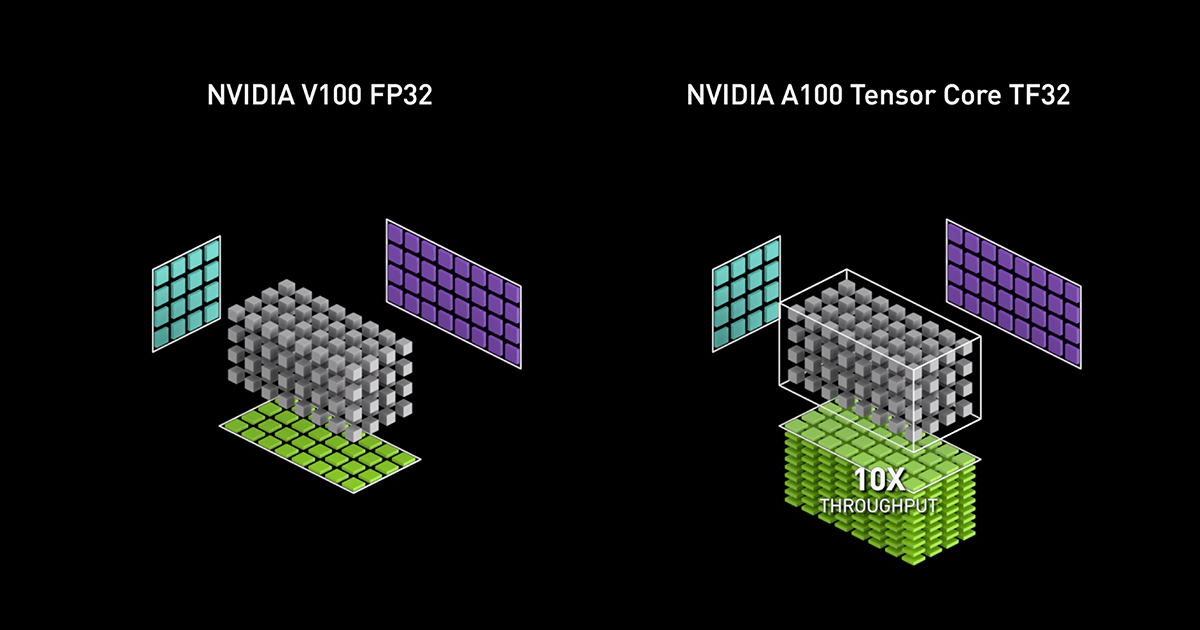

A Tensor Core is a specialized execution unit designed to perform warp-synchronous matrix math. In the Ada Lovelace architecture, the 4th-generation Tensor Cores introduced native support for the FP8 data format, doubling the throughput compared to the previous generation’s FP16 capabilities. When a streaming multiprocessor (SM) receives a matrix instruction, the Tensor Cores execute a fused multiply-add (FMA) operation across a 4×4 matrix in one clock cycle. This dedicated hardware allows NVIDIA to dominate AI workloads, as the Tensor Cores can crunch neural network data independently while the standard CUDA cores handle traditional rasterization tasks. This exact mechanism powers Deep Learning Super Sampling (DLSS), where the Tensor Cores infer high-resolution frames from low-resolution inputs in real-time.
By committing significant transistor budgets to standalone AI accelerators, NVIDIA has cemented an undeniable performance lead in brute-force matrix math. This hardware-first approach set the standard that competitors are now racing to match or bypass. This hardware-first approach pushes the physical limits of die space, as detailed in our RTX 5090D architectural deep dive.
AMD WMMA (Wave Matrix Multiply Accumulate): The integrated approach
While NVIDIA dedicates separate silicon to matrix math, AMD took a distinctly different architectural route with its RDNA and CDNA architectures. Instead of bolting on massive standalone AI blocks, AMD integrated matrix operations directly into its existing vector units. This design philosophy prioritizes die space efficiency and manufacturing yield over isolated AI throughput.

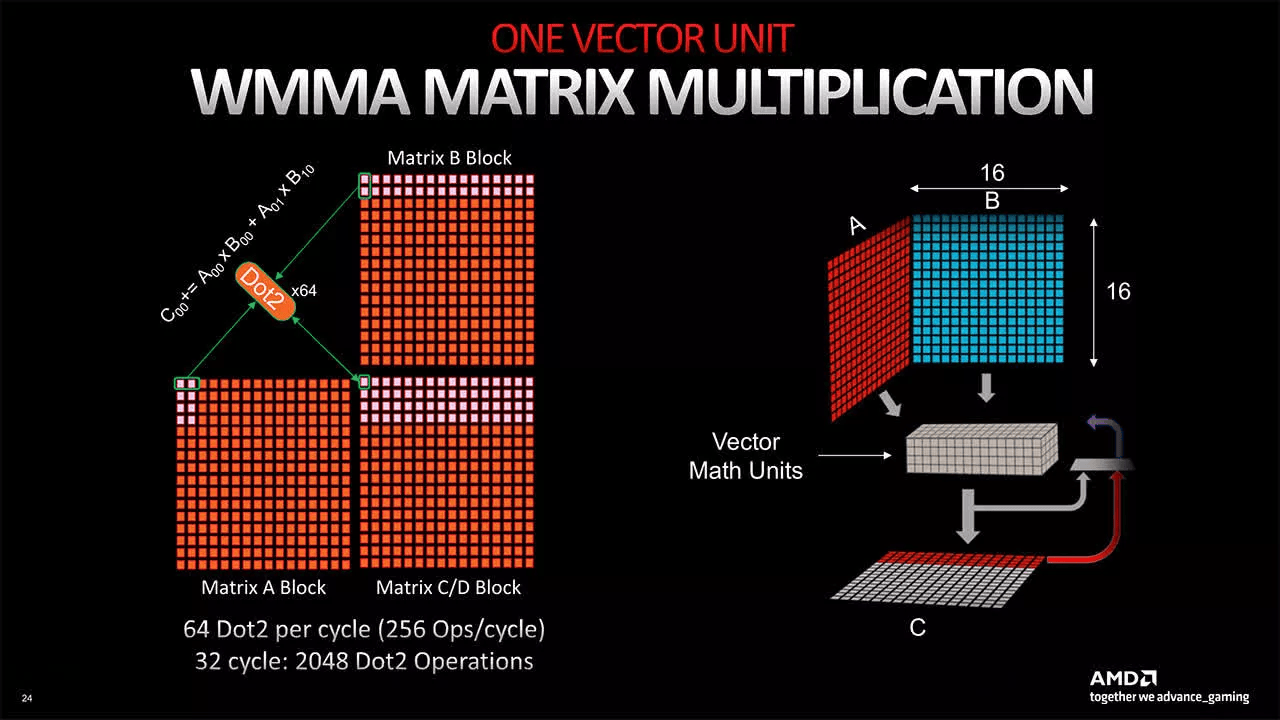

AMD utilizes Wave Matrix Multiply Accumulate (WMMA) instructions to execute AI workloads. In the RDNA 3 architecture, AMD introduced “AI Accelerators” per compute unit. However, these are not entirely separate physical cores like NVIDIA’s Tensor Cores. Instead, they are specialized instructions that repurpose the existing SIMD32 registers to process matrix math. By feeding data through the standard compute pipeline using optimized data paths, AMD can achieve up to a 2.7x performance increase in AI tasks over RDNA 2 without sacrificing massive amounts of silicon die area. This integrated approach is highly efficient for consumer gaming, where the GPU is primarily rendering and only periodically running AI tasks.
AMD’s WMMA strategy demonstrates a brilliant compromise between traditional rasterization power and modern AI demands. It keeps the silicon lean and cost-effective, though it currently trails dedicated hardware architectures in absolute maximum throughput for heavy data center workloads.
Intel XMX (Xe Matrix Extensions): The systolic array heavyweight

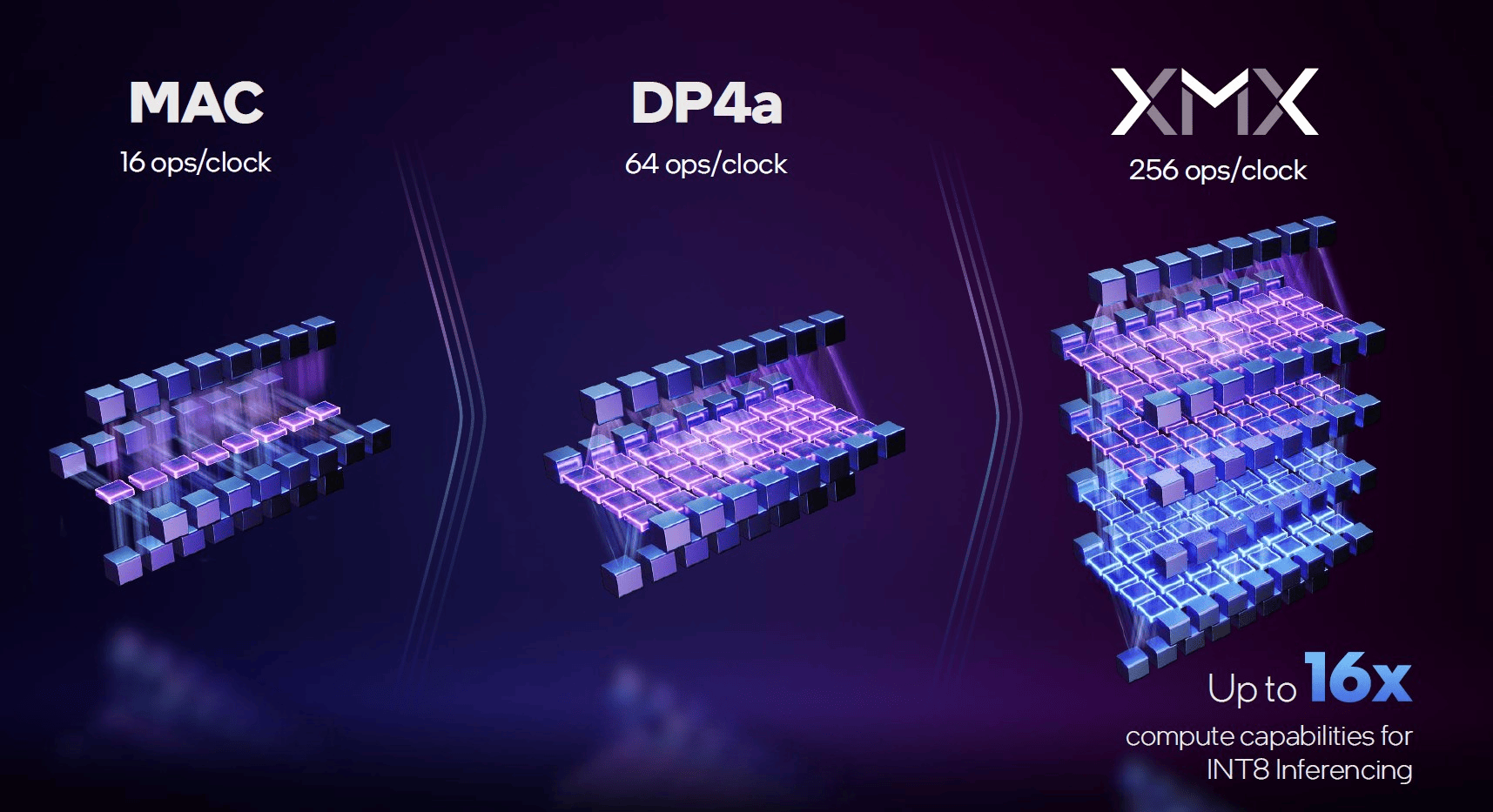

Intel entered the discrete GPU market determined to compete directly in the AI space from day one. With the Xe-HPG (Alchemist) and subsequent Xe2 architectures, Intel introduced Xe Matrix Extensions (XMX). This implementation swings back toward the NVIDIA philosophy, utilizing massive, dedicated systolic arrays built specifically for matrix multiplication.
The XMX engines are formidable pieces of silicon. Each Xe-Core contains dedicated XMX hardware that acts as a true systolic array, passing data directly from one arithmetic logic unit to the next without constantly writing back to memory. In the Alchemist architecture, a single Xe-Core boasts 16 XMX engines, capable of executing 4,096 MAC operations per clock cycle when using INT8 data types. This represents a massive amount of computational density. Intel leveraged this raw hardware power to build XeSS (Xe Super Sampling), an AI upscaling technology that directly competes with DLSS. Because XMX relies on a highly efficient systolic data flow, it is exceptionally fast at executing the complex neural networks required for high-fidelity image reconstruction.
Intel’s aggressive integration of XMX hardware proves that they view matrix math as the critical battleground for future graphics architectures. Their systolic arrays rival NVIDIA’s dedicated cores in architectural sophistication.
Architectural comparison: Tensor vs. WMMA vs. XMX
Evaluating these three distinct architectural approaches requires looking at them side-by-side. Each vendor has optimized their silicon for specific workloads, balancing die area against raw matrix math throughput.
To summarize the hardware engineering strategies:
| Feature / Vendor | NVIDIA Tensor Cores | AMD WMMA (RDNA 3) | Intel XMX |
| Architecture Style | Dedicated Silicon Block | Integrated SIMD Instructions | Dedicated Systolic Array |
| Primary Advantage | Absolute Peak Throughput | High Die-Space Efficiency | Massive MAC Operations per Clock |
| Supported Formats | FP16, bfloat16, TF32, FP8, INT8 | FP16, bfloat16, INT8 | FP16, bfloat16, INT8, INT4 |
| Flagship Consumer Feature | DLSS | FSR (Uses standard compute) | XeSS |
NVIDIA and Intel both utilize discrete, highly specialized hardware blocks that consume significant transistor budgets. This grants them an edge in heavy inference workloads and complex AI upscaling. AMD’s WMMA, conversely, shares resources with standard vector math, allowing them to pack more traditional shading power into a smaller, cheaper die.
Choosing the best architecture depends entirely on the workload. Dedicated matrix units offer unmatched AI speeds, while integrated instructions provide a balanced, cost-effective pipeline for traditional rendering. The physical limitations of standard GPU matrix math are actively driving the evolution of non-GPU silicon architectures for enterprise compute.
Real-world impact: How matrix units change gaming and compute
The architectural differences between Tensor Cores, WMMA, and XMX extend far beyond technical whitepapers. These hardware choices dictate the physical limits of what developers can achieve in consumer software. From high-end gaming to desktop AI inference, matrix units are actively reshaping the user experience.
In modern gaming, matrix math is primarily leveraged for AI-driven image reconstruction. NVIDIA’s DLSS and Intel’s XeSS rely on their respective matrix units to run complex convolutional neural networks in milliseconds, allowing gamers to render at 1080p and output at 4K with minimal image degradation. Beyond gaming, these matrix units have unlocked the era of the local Large Language Model (LLM). Running models locally requires immense memory bandwidth and matrix multiplication throughput. GPUs equipped with heavy, dedicated matrix blocks can process prompt tokens exponentially faster than standard FP32 pipelines, turning high-end consumer desktops into private AI servers. As the enterprise AI market consolidates, highlighted by Intel and NVIDIA’s $5 billion AI infrastructure deal, the standardization of matrix formats becomes critical
As software continues to shift reliance from fixed-function rendering to AI-assisted computation, the importance of these hardware blocks will only compound. The GPU of the future is essentially a massive matrix math calculator.
Conclusion: Which approach will define the next generation?
The divergence in GPU matrix unit architectures highlights a fascinating period of experimentation in hardware engineering. NVIDIA, AMD, and Intel have placed massive financial bets on how they believe compute workloads will evolve over the next decade.
NVIDIA’s Tensor Cores remain the gold standard, proving that dedicating massive die space to AI accelerators pays off in both enterprise dominance and consumer upscaling quality. Intel’s XMX systolic arrays validate this approach, showing that discrete AI hardware is necessary to achieve high-fidelity neural rendering. However, AMD’s integrated WMMA instructions should not be discounted; as transistor costs skyrocket, packing AI capabilities into existing vector registers offers an elegant, economically viable path forward.
Ultimately, the industry is moving inexorably toward dedicated matrix math hardware. As advanced process nodes become available, expect all three vendors to dedicate unprecedented amounts of silicon directly to matrix multiplication.
Frequently Asked Questions (FAQ)
CUDA cores execute operations sequentially and are optimized for single-precision floating-point (FP32) math, making them ideal for traditional graphics rendering. Tensor Cores are specialized circuits designed exclusively to perform matrix multiplication in parallel, processing entire blocks of data simultaneously for machine learning workloads.
AMD does not use physically separated, dedicated silicon blocks like Tensor Cores in their consumer RDNA GPUs. Instead, AMD uses Wave Matrix Multiply Accumulate (WMMA) instructions, which leverage the existing SIMD hardware to accelerate AI matrix operations without requiring dedicated die space.
Intel XMX (Xe Matrix Extensions) hardware accelerates the complex neural networks required for XeSS (Xe Super Sampling). By using these systolic arrays to infer high-resolution pixels from lower-resolution inputs rapidly, gamers get massive frame-rate boosts without heavily taxing the standard rendering pipeline.
