For decades, the idea of “microscopic robots” has been a staple of science fiction. Miniature machines patrolling our bloodstream to kill cancer cells or swarming together to build complex structures from the ground up. But while we have been great at making things small, we have been terrible at making them smart.
Until now, if you wanted a robot smaller than a millimeter, you usually had to sacrifice its “brain.” Most microrobots are just “puppets, dumb pieces of material steered by massive external magnets or ultrasound arrays. They do not think; they just react to the person holding the remote.

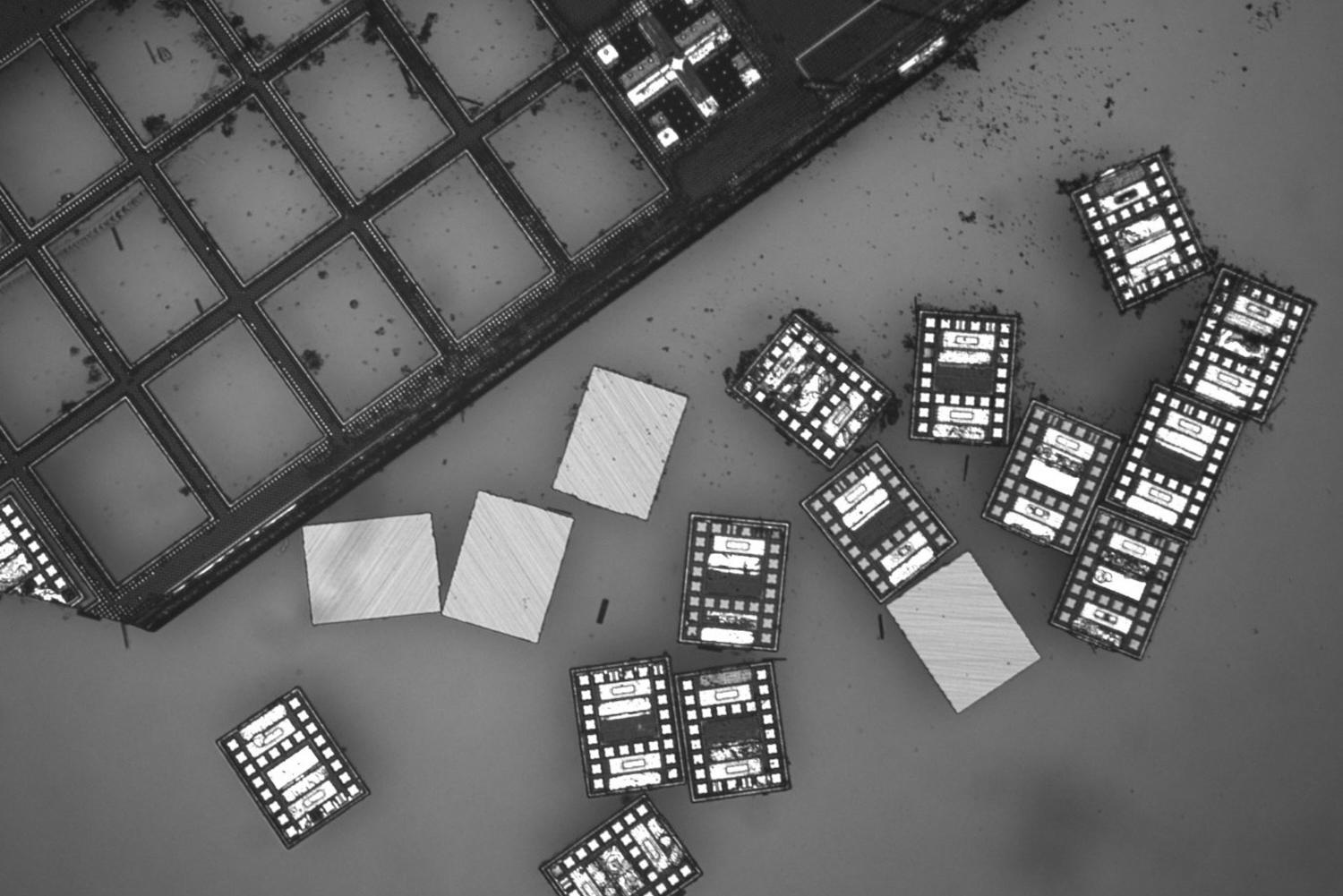

This was until now. A team of researchers from the University of Pennsylvania and the University of Michigan has successfully built a robot the size of a single-celled paramecium that can sense, think, and act using an entirely onboard system. This is not just a tiny motor; it is a tiny computer that knows how to swim.
The scaling problem: Why mini-bots were “dumb”?
In the world of gadgets, we are used to things getting smaller and faster every year. But when you shrink a robot down to sub-millimeter dimensions, the laws of physics start to play dirty.
The biggest hurdle is power. Conventional batteries do not work at this scale, and the physics of semiconductor circuits means that power leakage becomes a massive problem. Most “intelligent” robots integrated with sensors and processors were stuck at the 1-millimeter mark, a size limit that hadn’t been broken in over 20 years.
To get smaller, the team had to rethink everything. They used a 55-nanometer CMOS process, the same kind of tech used to make smartphone chips, but optimized it for subthreshold digital logic. This allows the microscopic robot to run its entire brain on a tiny power budget of about 100 nanowatts. For perspective, that’s about 10 million times less power than a standard 1-watt LED bulb.
Anatomy of a micro-bot
So, what do you get in a microscopic robot that measures roughly 210 by 340 micrometers? Quite a lot, actually:
- The Brain: A custom-designed processor that uses a “Complex Instruction Set Computer” (CISC) architecture.
- The Power Plant: Onboard photovoltaic (PV) cells that turn light into electricity.
- The Sensors: Integrated temperature and electric-field sensors.
- The Memory: Enough storage for about 32 instructions.
- The Engine: Platinum electrodes that use “electrokinetic propulsion” to swim through fluids.
The genius here is the CISC architecture. Because the robot has extremely limited memory (only a few hundred bits), the researchers created “super-commands” to compensate. Instead of needing 50 lines of code to measure temperature, the programmer uses one command: ts (Temperature Sense).
While this microrobot uses a custom digital CISC architecture to solve memory constraints, other cutting-edge researchers are looking toward even more radical ways to miniaturize intelligence. For instance, Transneuron’s single adaptive AI chip actually mimics the human brain’s synaptic plasticity, offering a glimpse at how future microrobots might learn and adapt on the fly without rigid programming
The “brain” vs. the “vocabulary”: Why architecture matters
In the world of computer architecture, there are two primary ways to design a processor’s “vocabulary”: RISC (Reduced Instruction Set Computing) and CISC (Complex Instruction Set Computing).
Most modern gadgets, like your smartphone or laptop, favor RISC because it uses a streamlined set of simple, fast instructions that each take exactly one clock cycle to execute. Think of RISC like building a Lego castle using only standard 2×4 bricks; it is efficient and predictable, but you need a lot of bricks (and a lot of instructions) to build something complex.
CISC, on the other hand, provides “specialized” bricks, instructions that can perform several low-level operations, such as loading data, performing a math calculation, and storing the result, all wrapped into a single command. While CISC hardware is more complex to design, the resulting software is much shorter and more compact.
The researchers chose a custom CISC architecture because these microrobots face a brutal “memory-power tradeoff”. At this microscopic scale, storing more bits of data increases electrical leakage, which would drain the robot’s tiny 100-nanowatt power budget. Because the team was limited to storing only about 32 instructions, a RISC approach would have been too “wordy” to be useful. By using CISC, they were able to compress massive robot actions into single “super-commands” like ts (sense temperature) or wav (transmit data via wiggling).
This allowed the microscopic robot to execute sophisticated, autonomous algorithms using a tiny amount of memory that would otherwise only be enough to perform the most basic arithmetic on a standard computer.
Squeezing it all in: The ultimate packing challenge
Creating a robot that “senses, thinks, and acts” required the team to integrate several distinct subsystems into a footprint smaller than a grain of dust.
The Solar Power Plant
- Most of the robot’s surface area, about 33.6%, is dedicated solely to these energy-harvesting cells.
- These cells convert light into the voltage needed to run the onboard circuits.
- For the 55-nm process used, leakage currents required a roughly 1:1 area allocation; doubling the memory would require adding an equivalent amount of solar space just to power it.
The Processor and Sensors
- The processor occupies about 26% of the robot’s body but consumes 93.2% of the total power budget.
- The team integrated sensors directly alongside the logic circuits, including a subthreshold temperature sensor.
- To keep the electronics safe in liquid, the entire chip is encapsulated in protective oxide and released from the silicon wafer using specialized nanofabrication steps
How do you program a speck of dust?
You can not plug a USB cable into a robot invisible to the eye. Instead, these bots are programmed using light. An external LED flashes in specific patterns, think Morse code. An optical receiver on the microscopic robot picks up these flashes and writes the bits directly into its memory. To prevent random light flickers from interfering, the robots require a specific passcode before they accept new instructions.
This allows for “multi-agent” coordination; you can send a passcode that only a specific subset of robots recognizes, assigning distinct tasks to different groups in the same solution.
Living on the edge: High-performance sensing
To prove these bots could work, the researchers turned them into autonomous thermometers. The robot was programmed to measure temperature, digitize the data, and “shout” the answer back.
A microscopic robot “shouts” by dancing. It uses the wav command to encode its data into its swimming pattern, wiggling in a rhythm that an external camera can decode. Despite its size, this “Paramecium PC” is one of the most accurate thermometers for its volume, offering a 0.3°C resolution. In experiments, the robots even “climbed” thermal gradients, autonomously seeking out warmth.
How does it stack up against other microscopic robotic devices?
In engineering, a “Pareto front” represents the absolute limit of what is possible, the point where you cannot improve one feature without sacrificing another. For microscopic robotics, the two conflicting features are size and intelligence. While other researchers have created incredibly tiny sensors, they often lack the power to move or the “brains” to make decisions.
Conversely, robots that can think are usually much larger, often exceeding a millimeter in size. As you will see in the table below, this new microrobot sits right on that cutting-edge limit: it is roughly 10 times smaller than previous autonomous efforts while maintaining a high-performance sensor suite and a fully functional onboard processor.
| Device | Volume (mm3) | Full Integration? | Power (nW) | Resolution (∘C) |
| Wireless Sensor (16) | 0.04 | Yes | 16 | 0.034 |
| RFID Tag (28) | 0.025 | Yes | 220 | 0.1 |
| Implantable Mote (21) | 0.1 | Yes | 10,000 | 0.16 |
| This Robot (2025) | 0.0034 | Yes | 100 | 0.3 |
Why this matters for the future
As a tech enthusiast, it is easy to get excited about the “cool factor” of a microscopic computer, but the real-world implications are massive:
- Medicine without Surgery: Future versions of these bots could aid in targeted drug delivery, releasing payloads in response to local sensor cues like biochemical markers or temperature changes rather than waiting for global commands.
- Low-Cost Science: Because these are built using standard semiconductor foundries, they can be mass-produced. The researchers estimate that in full production, these robots would cost roughly one penny each.
- Nanomanufacturing: Programmable microrobots could use passcode-based communication to receive and update instructions as they work together to build complex micro-structures.
- Biological Exploration: Their tiny size allows them to probe thermal gradients at small spatial scales in microfluidic chambers or even inside capillary tubes.
The combination of versatility and low cost offered by onboard information processing could revolutionize fields from surgery to environmental monitoring. As we explore these tiny silicon systems, we are also seeing the rise of other organic alternatives like fungal computing and mushroom motherboards, which could eventually lead to ‘bio-hybrid’ robots that are as much living organisms as they are machines.
The verdict
We are entering the era of the General-Purpose Microrobot. For the first time, we have a machine small enough to interact with cells but “smart” enough to follow a digital algorithm. Whether it is targeted drug delivery or nanomanufacturing, the “Fantastic Voyage” is no longer just a movie plot; it is a line of code away.
