The Metal Alchemy of Speed: How Honda F1 3D Printed Parts are Redefining Racing Power Units

In the high-stakes world of Formula 1, where a single millisecond is the difference between the podium and the paddock, the battle for supremacy has moved from the wind tunnel to the molecular level. While most fans focus on aerodynamics, the real revolution is happening inside the internal combustion engine (ICE). Honda, the powerhouse behind some of the most dominant engines in modern racing history, has spent over 13 years perfecting a secret weapon: 3D printed metal parts.

By moving away from traditional forging and casting, Honda has unlocked “unprecedented and innovative shapes” that allow their power units to run hotter, harder, and more efficiently than ever before. This deep dive explores the technical mastery of Honda’s additive manufacturing (AM) workflow and how it solves the most brutal thermal management challenges in motorsports.

The engineering shift: From forging to Laser Powder Bed Fusion (L-PBF)

For decades, F1 engines relied on subtractive manufacturing, taking a solid block of metal and carving it down. While precise, this method is limited by the “reach” of the cutting tool. You simply cannot machine a curved, microscopic cooling channel inside a solid metal block.

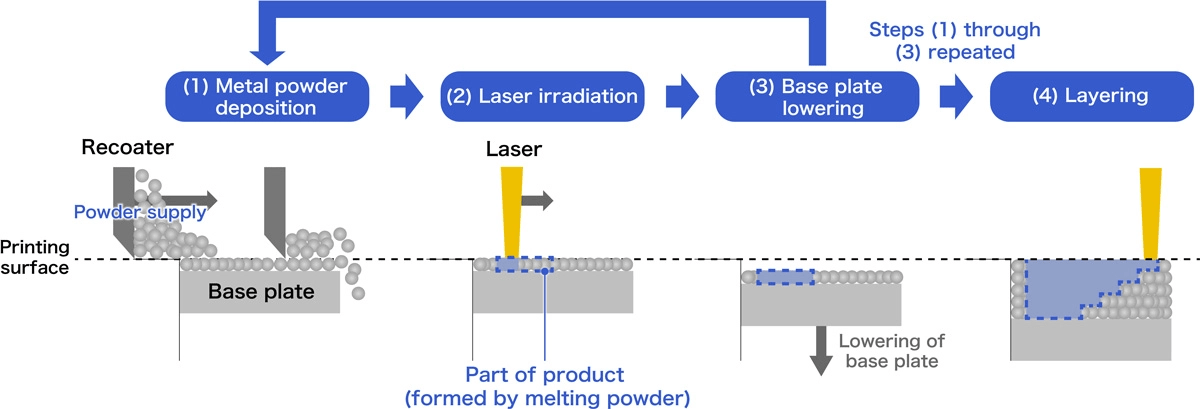

To solve this, Honda transitioned to Laser Powder Bed Fusion (L-PBF), a specific type of SLM technology (Selective Laser Melting). In this process, a high-powered laser selectively melts layers of metal powder as thin as 20 microns (0.02mm). This allows Honda to build parts from the ground up, layer by layer, enabling internal geometries, like “honeycomb” lattices and spiral cooling veins, that are physically impossible to create via traditional means.

Technical Definition: SLM (Selective Laser Melting) is an additive manufacturing process that uses a high-power-density laser to melt and fuse metallic powders. Unlike sintering, SLM fully melts the powder into a homogenous 3D metal part with nearly 100% density.

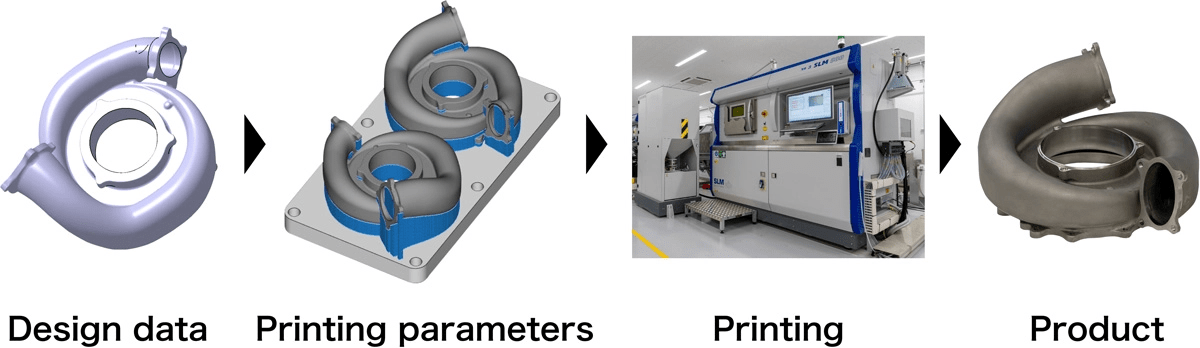

This shift is not just about complexity; it is about Lead Time. Honda can now iterate on a turbine housing design and have a physical part ready for testing in days rather than months, allowing them to react to FIA regulation changes at “CAD speed”.

Piston revolution: Why Honda swapped aluminum for 3D printed iron

One of the most radical applications of Honda F1 3D printed parts is the engine piston. Historically, F1 pistons were forged from high-strength aluminum alloys to keep reciprocating mass low. However, as combustion pressures and temperatures increased, aluminum reached its physical limit.

The Material Paradox

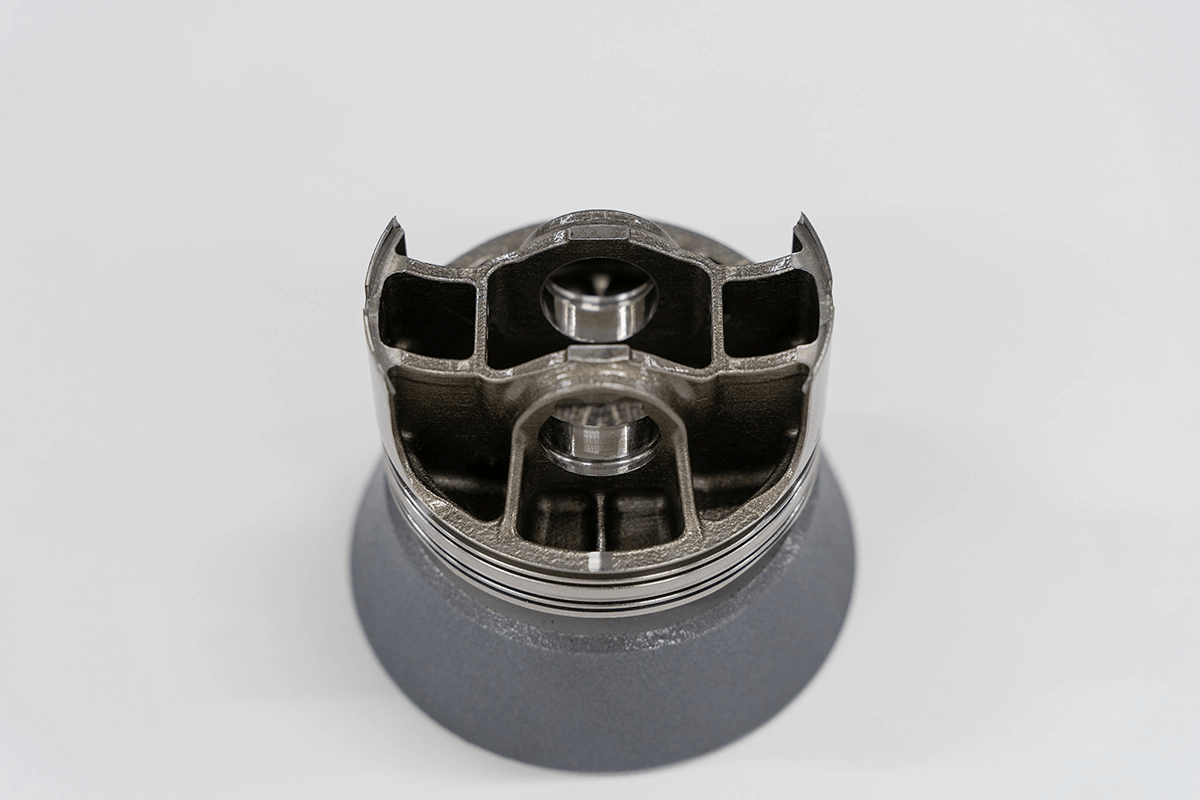

Honda made a counterintuitive move: they switched back to Iron. While iron is significantly heavier than aluminum, 3D printing allowed them to design a “hollow” structure with incredibly thin walls.

By using additive manufacturing, Honda integrated a “closed cooling channel” directly into the piston crown. This channel allows oil to circulate closer to the combustion face, reducing thermal load on the piston rings by approximately 20°C. This superior thermal management allows the engine to run higher compression ratios without the risk of catastrophic “knock” or structural failure.

While Honda’s hollow iron pistons represent the pinnacle of modern additive manufacturing, they aren’t the first time engineers have experimented with radical combustion shapes. Check out our deep dive into the Ferrari Oval Piston V12 engine, another masterclass in overcoming thermal and mechanical limits.

Mastering the heat: Inconel turbine housings and SLM Technology

The turbocharger is the heart of an F1 car’s Energy Recovery System (MGU-H). It operates in an environment of literal fire, with exhaust gases exceeding 1,000°C. Traditionally, these housings were cast from Inconel, a nickel-based superalloy known for its extreme heat resistance.

Solving the deformation crisis

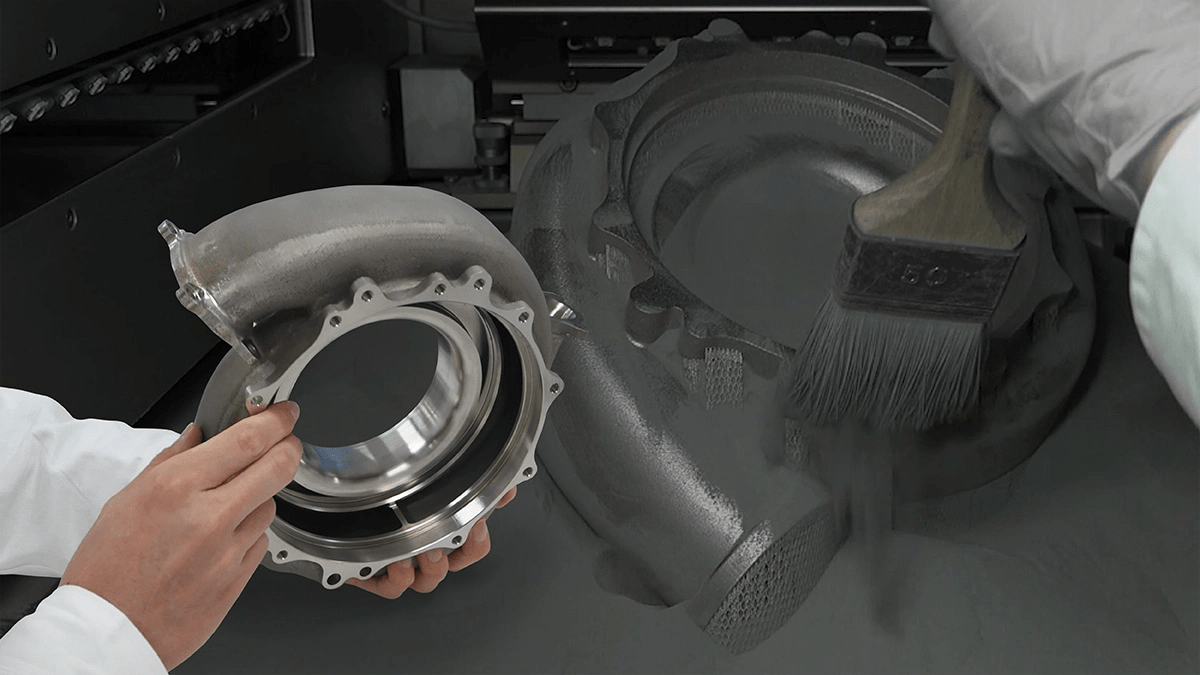

Casting Inconel is notoriously difficult. Thin-walled sections often deform during the cooling process, leading to scrapped parts and inconsistent tolerances. Honda solved this by 3D printing the housings.

1. Complex Internal Volutes: The SLM process allows for a “double-wall” construction with an air gap for thermal insulation. This keeps the heat inside the turbo (improving MGU-H efficiency) while protecting the surrounding engine components.
2. Topology Optimization: Using software to remove every gram of non-essential metal, Honda created turbine housings that are lighter and more rigid, reducing the “turbo lag” by minimizing the rotational inertia of the entire assembly.
3. Sensor Integration: Honda now “prints” sensor ports directly into the internal gas flow path, providing real-time data on exhaust pressure and temperature that was previously impossible to capture.

The result is a turbine housing that meets strict dimensional criteria while significantly reducing manufacturing costs and assembly time.

The R&D challenge: Overcoming “metal vapor” and porosity

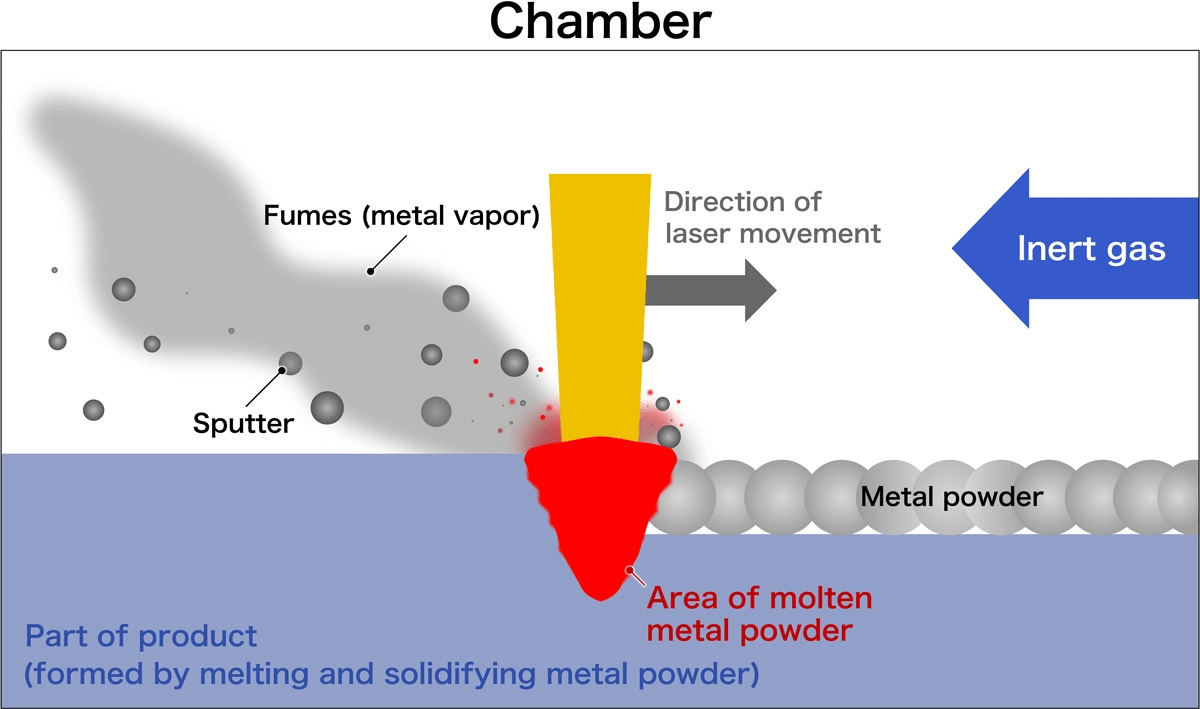

While 3D printing sounds like a magic bullet, Honda’s R&D facility at Wako has spent a decade solving the “invisible” problems of metal AM. When a laser hits metal powder at several thousand degrees, it creates black vapor (fumes) and tiny splashes of molten metal called spatter.

If these fumes are not removed instantly, they can block the laser, leading to “cold joins” or porosity (tiny holes) in the metal. To combat this, Honda developed a sophisticated Inert Gas Circulation System.

• The Process: Pure argon or nitrogen gas is circulated through the build chamber at precise velocities.
• The Goal: To sweep away fumes and spatter before they can settle on the next layer of powder.
• The High-Tech Solution: Honda now uses deformation prediction simulation. Before they ever fire a laser, a computer model predicts how the metal will shrink and warp as it cools. This allows engineers to “pre-deform” the digital model so that the final, cooled part is perfect down to the micron.

From F1 track to consumer road: The future of Honda’s smart factories

The ultimate goal of Honda’s F1 program is not just winning trophies, it is the realization of “Smart Factories.” The expertise gained in combustion chamber cooling and metal metallurgy is already trickling down to high-performance consumer vehicles and specialized applications.

The transition of this SLM technology from the F1 grid to mass production is part of a larger historical trend. We’ve cataloged the most impactful core race car to road innovations that started on the track and ended up in your driveway.

For example, Honda is using the same topology optimization techniques to create custom, 3D-printed aluminum handlebars for racing wheelchairs and high-mix, low-volume sports car parts. By investing in startups like Seurat Technologies, Honda is looking at “Area Printing”, a way to 3D print metal at speeds that could eventually rival traditional mass production.

As the regulations for F1 demand even higher electrical output and sustainable fuels, 3D printing will no longer be an “experimental” tool. It could be the only way to manufacture the next generation of hyper-efficient power units.

As Honda pivots toward its next racing chapter, including the upcoming Honda Prelude GT500 HRC for the 2026 Super GT, the lessons learned in F1 material science will be the foundation for their future high-performance platforms.
